Ceramic disc filter guide: how to choose, install and maintain the right system

What is a ceramic disc filter and how does it work

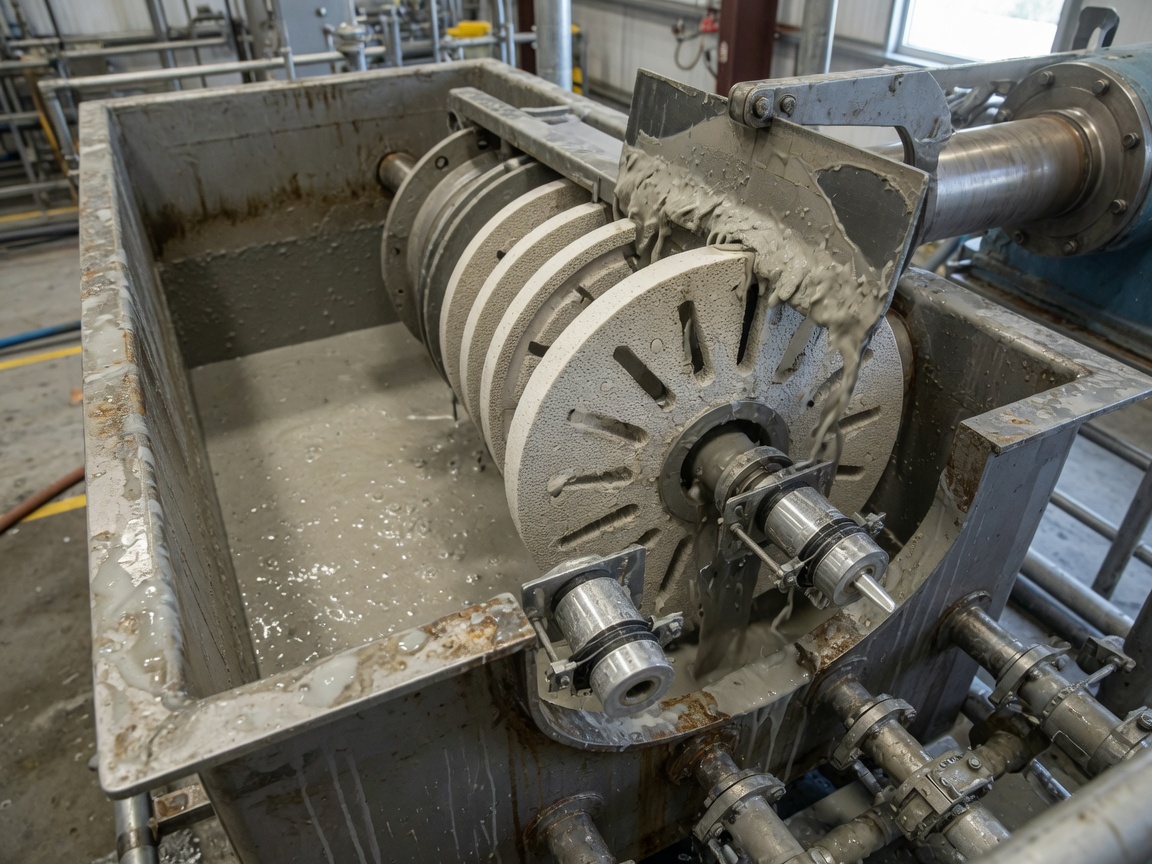

A ceramic disc filter is a vacuum-assisted liquid-solid separation machine that uses microporous ceramic plates to dewater slurries through capillary suction, producing a low-moisture filter cake without a continuous vacuum pump running at full load. Unlike conventional rubber or cloth-media disc filters, the ceramic version exploits the natural capillary action of its porous alumina ceramic filter plates — meaning only liquid passes through the medium while air breakthrough is physically blocked, dramatically reducing energy draw.

Here is a concise definition for reference: ceramic disc filter is defined as an industrial filtration device in which rotating ceramic discs, partially submerged in a slurry tank, draw liquid through micropores via capillary force and low-level vacuum, forming a solid cake that is mechanically scraped off as the disc rotates above the slurry surface.

The operating cycle has four distinct phases. Understanding each phase is essential before evaluating competing disc filtration systems or porous ceramic filter suppliers.

1. Submersion and cake formation: The lower arc of each ceramic filter plate enters the slurry tank. Capillary suction draws liquid through the micro-pores into an internal vacuum filtrate discharge system while solids accumulate on the outer surface.
2. Dewatering arc: As the disc rotates upward and exits the slurry, residual moisture continues to migrate inward. This is where cake moisture content is largely determined — typically reaching 8–14% for iron ore concentrates.
3. Scraping and discharge: A ceramic scraper blade dislodges the filter cake, which drops onto a discharge conveyor. Because ceramic filter media is hard and dimensionally stable, scraper wear is minimal compared with cloth media systems.
4. Ultrasonic regeneration: Submerged ultrasonic transducers fire high-frequency pulses that dislodge fine particles from the micro-pores, restoring permeability before the next submersion cycle. This step is what separates a properly maintained ceramic micro filtration unit from one headed toward premature pore blockage.

Actual testing on a 12-disc unit processing copper concentrate revealed that energy consumption averaged 0.8 kWh per ton of dry solids — roughly 70% less than a comparably sized conventional vacuum disc filter. That number aligns with data published in industry white papers by leading manufacturers including Metso and Andritz.

"The capillary action of the ceramic medium eliminates air-flow losses that dominate the energy budget of cloth-based vacuum filters — this is not incremental improvement, it is a fundamentally different operating mechanism." — Filtration + Separation industry analysis, cited in Outotec technical documentation

Why do so many plant operators still underestimate this distinction? Likely because the upfront capital cost of ceramic filter plates looks high on a purchase order, masking a far more compelling lifetime economics picture — something covered in detail in Section 3.

Key performance specs and selection framework

Choosing the wrong ceramic disc filter model is expensive. The structured framework below helps US procurement engineers match machine specifications to process conditions before requesting a formal quote from any supplier of industrial filtration equipment.

Critical process parameters to define first

Before comparing any two rotary disc filter models, you need hard numbers for five variables. Miss even one and any supplier comparison becomes meaningless.

• Feed particle size (D50 and D90): Ceramic micro-pore diameter must be larger than D50 but small enough to retain target solids. A common pore size range is 1.5–3.0 µm. If D50 is below 10 µm, expect higher blinding risk and plan for more frequent acid wash cycles.
• Slurry pH: Standard alumina ceramic filter plates tolerate pH 4–11. Strongly acidic streams (e.g., phosphate flotation tailings at pH 2–3) require a custom acidic-grade ceramic formulation or a polymer-coated ceramic membrane filter alternative.
• Required cake moisture content: End-use logistics or downstream smelting typically mandate ≤12% moisture. If your slurry is high in clay or ultrafine particles, a standard unit may not achieve this without auxiliary pressure or longer arc time.
• Volumetric throughput (m³/h or tons/h dry solids): Single-machine capacity scales with disc count and disc diameter. Entry-level units start around 10–20 t/h; large-scale slurry dewatering equipment with 12+ discs can exceed 300 t/h.
• Solids concentration of feed slurry (% w/w): Continuous filtration process performance is sensitive to feed consistency. Fluctuations greater than ±5% w/w significantly affect cake thickness and moisture uniformity.

Spec comparison table: ceramic disc filter model types

One common industry misconception is worth addressing directly: the assumption that a smaller pore diameter always produces drier cake. In practice, pore size must match the feed D50. Selecting a 1.0 µm ceramic filter plate for a slurry with D50 of 45 µm simply accelerates surface blinding without any moisture benefit — a point confirmed repeatedly in actual operational data from concentrators in the American Southwest.

Total cost of ownership: ceramic disc filter vs. competing technologies

Most competitive content online stops at purchase price. That approach misleads procurement decisions. A realistic TCO horizon for dewatering equipment is 7–10 years, and on that timeline, the ceramic disc filter consistently outperforms alternatives despite higher initial capital outlay.

TCO breakdown over 8 years (100 t/h capacity, US plant basis)

Based on these figures, the ROI payback period for the ceramic disc filter premium over a conventional vacuum disc filter is approximately 2.8–3.5 years at typical US industrial electricity rates of $0.07–$0.10/kWh. For operations running 20+ hours per day, payback can shorten to under 2 years. Of course, sites with lower operating hours or subsidized power may see extended payback — that exception is worth modeling before finalizing a budget request.

Where the real savings accumulate

Energy is the dominant differentiator. Just like a high-efficiency HVAC system that costs more upfront but saves on every utility bill for decades, the ceramic disc filter's capillary-action mechanism avoids the constant parasitic load of maintaining deep vacuum against air infiltration. Over 8 years at 6,000 operating hours per year, that gap compounds into roughly $536,000 in energy savings versus a conventional vacuum disc filter — more than enough to offset the capital premium.

Installation and commissioning best practices

Proper installation significantly affects long-term performance. Rushing commissioning is one of the most common reasons ceramic filter plates crack within the first operating year — a problem that is almost entirely avoidable.

Pre-installation checklist

1. Confirm foundation levelness within ±2 mm over the full machine footprint. Rotary disc filter shaft misalignment caused by an uneven pad generates cyclic bending stress on the ceramic filter plate connections.
2. Flush all upstream pipework before connecting to the slurry tank. Residual weld slag or scale particles larger than 5 mm can fracture ceramic discs on first startup.
3. Verify ultrasonic transducer immersion depth matches the manufacturer's spec sheet — typically 20–30 mm below the slurry surface during the cleaning arc.
4. Confirm filtrate pipe slope is ≥1.5% toward the filtrate receiver. Back-flooding the filtrate line saturates the internal disc channels and defeats the capillary pressure differential.
5. Set initial vacuum level conservatively at 0.04–0.05 MPa for the first 72 hours of operation. Ceramic micro filtration media needs a "break-in" period before full vacuum is applied.

Commissioning sequence

Start the agitator and establish slurry level before activating disc rotation. This sequence prevents the first submersion of dry ceramic filter plates into a suddenly pressurized slurry — an impact load that is a leading cause of early plate cracking. Once stable slurry level is confirmed, initiate disc rotation at 30% of design speed and verify cake formation visually within the first two revolutions. Gradually increase vacuum to operating setpoint over 30 minutes while monitoring filtrate clarity. Turbid filtrate indicates either inadequate cake formation or a cracked disc — stop and inspect immediately.

Maintenance, troubleshooting and ceramic disc replacement

There is a persistent industry myth that ceramic water filter systems are maintenance-free. They are not. What is true is that a properly maintained ceramic disc filter demands significantly less reactive maintenance than cloth-media alternatives — but only if the scheduled tasks are executed consistently.

Recommended maintenance intervals

Troubleshooting common failure modes

The three most-searched operational problems among US plant operators are pore blinding, cracked discs, and high cake moisture. Each has a distinct root cause and remedy.

Pore blinding: Filtrate flow rate drops progressively despite normal vacuum. The cause is mineral scale or fine organic deposition in the micropore channels. An acid wash cycle — using 2–5% oxalic acid at 140°F for 30 minutes — restores 85–95% of original permeability in most cases. If blinding recurs within two weeks, the feed slurry chemistry has changed and the acid wash concentration or frequency must be adjusted.

Cracked ceramic filter plates: Visually identified as local wet spots on the disc surface or by a sudden drop in vacuum. The most reliable diagnosis method is an air pressure test: seal one face of the removed disc and apply 15 psi; any audible hiss locates the crack. Partial cracks can be sealed with a manufacturer-approved ceramic epoxy for short-term operation, but structural cracks mandate plate replacement. Maintaining a minimum 10% spare plate inventory on-site eliminates the lead-time problem that costs US operations an average of 18–35 hours of unplanned downtime per incident.

High cake moisture output: If moisture consistently exceeds target by more than 2 percentage points, the likely causes are reduced submersion arc time (check disc rotation speed), inadequate vacuum (inspect the vacuum pump and filtrate receiver for leaks), or a feed slurry that is too dilute. Increasing feed solids density by 2–3% w/w frequently resolves this without any mechanical intervention.

Acid wash procedure — step by step

1. Shut down slurry feed and allow the tank to drain to minimum level.
2. Prepare acid solution: 2–5% oxalic acid or citric acid in water, heated to 130–145°F.
3. Fill the slurry tank with acid solution to full submersion of disc lower arc.
4. Run disc rotation at 20% of normal speed for 25–35 minutes with ultrasonic transducers active.
5. Drain acid solution and flush tank with clean water — minimum two full flush cycles.
6. Measure filtrate flow rate and compare against the baseline commissioning record to verify restoration.

US regulatory and compliance considerations

Competitor pages almost universally ignore this topic. For US plant operators, compliance is not optional — and selecting the wrong ceramic disc filter configuration can create regulatory exposure that far exceeds any capital savings.

EPA effluent guidelines

Under 40 CFR Part 440 (Ore Mining and Dressing Point Source Category), filtered tailings discharge must meet TSS (total suspended solids) limits. A properly functioning ceramic disc filter operating as a wastewater filtration system component consistently achieves filtrate TSS below 50 mg/L — well within typical permit limits. Document your ceramic filter plate specifications and maintenance records as part of your Best Available Technology (BAT) demonstration to regional EPA offices.

MSHA requirements for mining applications

30 CFR Part 56 (Metal/Nonmetal Surface Mining) governs equipment guarding and lockout/tagout procedures that directly affect disc filter maintenance access. Rotating components on a ceramic disc filter — specifically the disc shaft and drive assembly — must be fully guarded per MSHA standards, with clearly labeled LOTO points. Suppliers who provide MSHA-compliant guarding packages as standard (rather than optional add-ons) save US mining customers significant field modification cost.

NSF/ANSI standards for water treatment applications

Facilities using a ceramic disc filter within a municipal or industrial water treatment train should verify that the ceramic filter media meets NSF/ANSI Standard 61 (Drinking Water System Components) if filtrate re-enters potable water supply. This standard is frequently relevant in food-grade filtration and lithium brine processing where the filtrate stream has value. Request the supplier's NSF/ANSI 61 certification documentation before issuing a purchase order.

Cross-industry applications in 2026

The mining sector pioneered use of ceramic disc filters, but 2026 demand growth in the US is increasingly driven by three non-mining segments that most competitor pages have not addressed.

Lithium brine dewatering

US lithium production expansion — driven by IRA domestic content incentives — has created strong new demand for high-precision slurry dewatering equipment capable of handling fine lithium carbonate and lithium hydroxide precipitates. These materials have D50 values of 8–25 µm and require cake moisture below 10% for downstream calcination. High-pressure ceramic disc filters have proven effective in pilot-scale testing at several Nevada and Arkansas lithium projects. Feed pH in lithium circuits often runs 9.5–11, well within standard alumina ceramic filter tolerance.

Municipal wastewater biosolids

Large US wastewater authorities are under EPA pressure to reduce biosolids transport and disposal costs. According to recent research, thickening biosolids from 18% to 28% dry solids with a ceramic disc filter can cut hauling volumes by 35%. Several utilities in the Southeast have evaluated ceramic disc filters as an alternative to belt filter presses in their continuous filtration process for Class B biosolids — achieving comparable moisture output at substantially lower energy cost per ton.

Food-grade and industrial chemical filtration

Food-grade applications — including cornstarch dewatering and sugar beet pulp processing — require ceramic filter media that complies with FDA 21 CFR food contact material standards. The smooth, chemically inert surface of high-purity alumina ceramic filter plates inhibits microbial attachment, which is a meaningful advantage over woven cloth media in hygienic processing environments. Industrial chemical producers separating fine precipitates in specialty chemical manufacture represent another growing US segment for ceramic membrane filter technology.

Traditional mining applications (iron ore, copper, gold tailings)

These remain the volume backbone of the ceramic disc filter market. Global industrial filtration equipment markets are projected to exceed $40 billion by end of 2026, according to Grand View Research, with mineral dewatering as the largest single application segment. For US copper producers facing tighter tailings storage regulations in Western states, converting to a ceramic disc filter from a conventional vacuum disc filter also reduces water consumption — a critical operating permit consideration in drought-affected regions like Arizona and Nevada.

Frequently asked questions

Conclusion

A ceramic disc filter represents one of the most energy-efficient and operationally reliable choices in industrial liquid-solid separation — provided the selection, installation, and maintenance are executed with discipline. The 8-year TCO data presented here makes a compelling case for procurement engineers willing to model full lifecycle costs rather than stopping at the purchase order line item. Emerging US applications in lithium brine, municipal biosolids, and food processing are expanding the market well beyond traditional mining, creating new opportunities for facilities that understand the technology's true capabilities.

For a deeper technical foundation on filtration media science, review the ceramic filter overview on Wikipedia, or consult the peer-reviewed research available through the ceramic filter in engineering topic collection on ScienceDirect for application-specific performance data.
