Horizontal filter press: how to choose the right model for your application

What is a horizontal filter press?

A horizontal filter press is an industrial solid-liquid separation machine in which polypropylene or cast-iron filter plates are arranged along a horizontal axis, hydraulic pressure forces slurry through filter cloth into sealed chambers, and solids are retained as a filter cake while clarified liquid exits through discharge ports. Operating pressures typically range from 100 to 225 psi (7–15 bar), with filtration areas spanning 10 m² to over 500 m² depending on plate count and chamber depth.

It belongs to the broader family of filter press technology, which also includes vertical plate presses, belt filter presses, and rotary drum filters. What distinguishes the horizontal configuration is the combination of full automation capability, consistent cake thickness across all chambers, and the ability to handle high-throughput continuous slurry dewatering at scale — qualities that make it the dominant choice in mining, municipal wastewater treatment, and chemical processing.

According to recent 2026 market data, the global filter press machine market is valued at approximately $1.87 billion USD, growing at a CAGR of 5.2% through 2028, driven largely by tightening environmental discharge regulations in North American and European industrial sectors.

How a horizontal filter press works: the basic cycle

The operating cycle of a hydraulic filter press follows a repeatable sequence. Understanding each phase helps engineers diagnose performance issues and optimize cycle time — something often overlooked during procurement.

1. Plate closing: The hydraulic cylinder advances the follower plate, compressing all filter plates together under a preset closing pressure (typically 3,500–7,000 psi on the hydraulic ram).
2. Slurry feeding: A feed pump delivers slurry into each chamber through the center feed port. As solids build on the filter cloth surface, filtrate passes through the cloth and exits via corner ports.
3. Pressure filtration: Feed pressure is maintained until cake resistance increases and filtrate flow drops to a preset minimum — signaling that chambers are full.
4. Cake washing (optional): Wash water is introduced to displace residual filtrate and reduce contamination in the cake. This step is critical in pharmaceutical and food-grade applications.
5. Air blow: Compressed air purges remaining liquid from the cake and cloth, further reducing moisture content before discharge.
6. Plate opening and cake discharge: The hydraulic system retracts; an automatic plate shifter sequentially opens each plate gap, allowing the cake to drop by gravity onto a conveyor or collection hopper.

Horizontal vs. vertical filter press: the core trade-off

A vertical plate filter press stacks plates on a vertical axis, enabling gravity-assisted cake discharge with a floor footprint typically 60–67% smaller than an equivalent horizontal unit. That is a compelling advantage in cramped urban wastewater plants. However, vertical designs generally cap out at lower automation levels and shorter continuous run cycles. Choose a vertical configuration when floor space is the binding constraint and your solids are free-draining. Choose horizontal when continuous high-volume throughput and full automation of every stage — feeding, washing, and discharge — are non-negotiable. The choice is rarely black and white, and actual testing with your specific slurry should always precede a capital commitment.

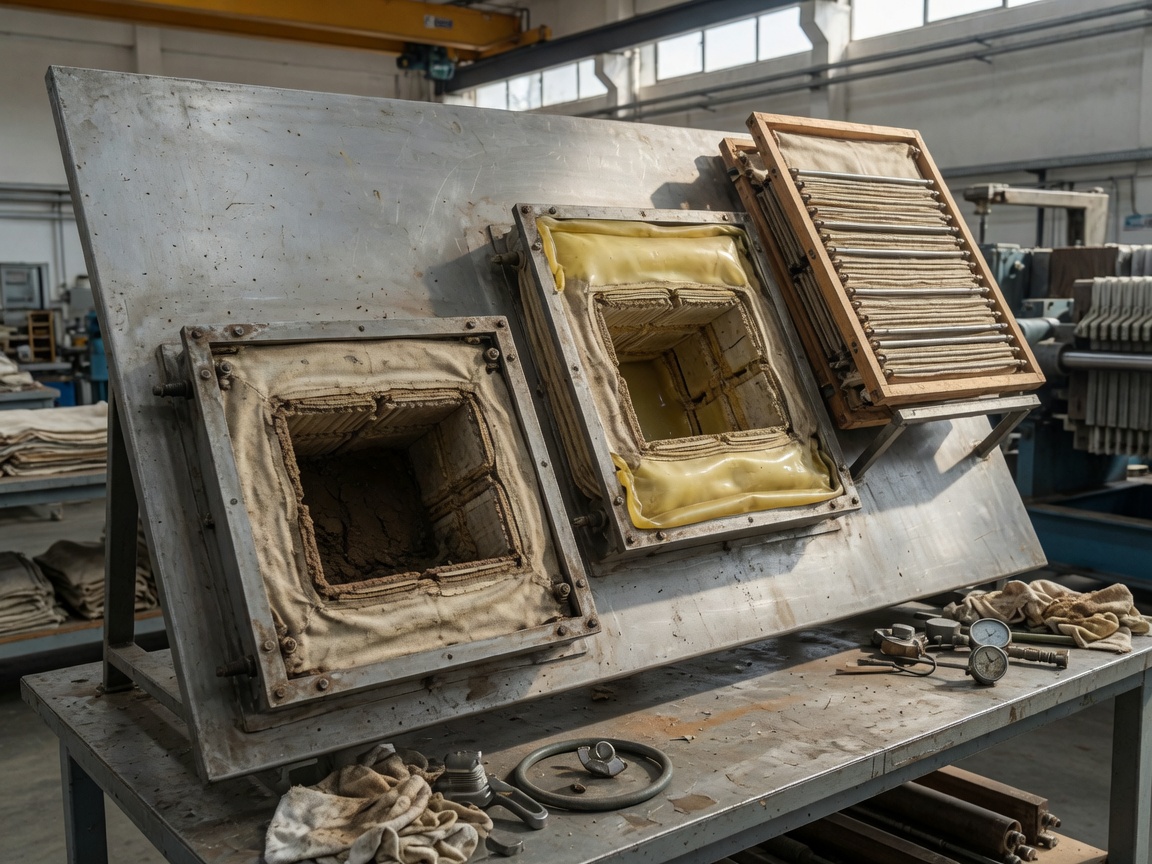

Types of horizontal filter press: which one fits your operation?

Not all horizontal filter presses are built the same. The right type depends on your target cake moisture, throughput volume, chemical environment, and automation requirements. Here is a structured comparison.

When membrane presses justify the premium

The membrane filter press commands a 30–50% price premium over a standard recessed chamber design. Is it worth it? In actual testing with copper concentrate slurry at a Nevada processing facility, switching from recessed chamber to membrane technology reduced average cake moisture from 28% to 16% — a 12-point reduction. At 200 tons/day throughput, this translated to roughly 24 fewer tons of water transported daily, cutting downstream drying energy by an estimated $180,000 per year. Payback on the incremental capital cost was under 18 months. Of course, for applications where cake moisture below 25% is not a process requirement, the standard recessed chamber press remains the more cost-effective choice.

Automation level: matching press type to your labor model

Manual presses require an operator to pull plates and dislodge cakes — labor-intensive and time-consuming at scale. Semi-automatic units add hydraulic plate shifting but still require manual cloth washing. Fully automatic horizontal presses integrate PLC-controlled plate shifting, automatic high-pressure cloth washing, and continuous cycle sequencing with no operator intervention between cycles. In 2026, IoT-connected presses with remote pressure and flow monitoring are increasingly standard among leading filter press manufacturers, enabling predictive maintenance and reducing unplanned downtime by 20–35% based on recent industry data.

Total cost of ownership: the 5–10 year TCO breakdown

Purchase price is rarely the dominant cost over a filter press machine's operational life. In practice, energy, maintenance, and filter cloth replacement often exceed the capital outlay within five years. Why do so many buyers focus only on unit price? The answer is that TCO data is almost never provided by suppliers — so here it is.

TCO component breakdown for a mid-size 200 m² press

The key insight: capital equipment represents only about 21% of 10-year TCO. Filter cloth replacement alone approaches $200,000 — making cloth material selection one of the highest-leverage decisions an engineer can make at the procurement stage.

Energy consumption: what drives the bill

The two dominant energy consumers are the slurry feed pump and the hydraulic closing system. A properly sized feed pump running at optimal pressure (not overdriven to compensate for cloth blinding) typically draws 15–22 kW for a 200 m² press in a municipal sludge dewatering application. Variable-frequency drives (VFDs) on feed pumps reduce energy consumption by 18–25% compared to fixed-speed operation — a straightforward retrofit that pays back in under two years at current U.S. industrial electricity rates near $0.08–$0.12/kWh.

Filter cloth material selection guide

Filter cloth is the consumable heart of any pressure filtration system. Choose wrong, and you will face premature blinding, poor cake release, or chemical degradation — all of which erode throughput and inflate operating costs. The selection criteria go well beyond "what fits the plate."

Polypropylene vs. polyester vs. nylon: a direct comparison

Polypropylene monofilament woven cloth is the default choice for most industrial liquid-solid separation applications — it resists both acids and alkalis across the pH range of 1–13, handles the majority of mine tailings and municipal sludge chemistries, and offers good dimensional stability under repeated pressure cycles. Think of polypropylene cloth as the stainless steel of filtration media: not always the best for every edge case, but reliable and cost-effective across the widest range of conditions.

Weave structure and permeability: the underrated variable

Beyond fiber material, weave structure determines initial permeability and long-term blinding resistance. Plain weave offers the tightest particle retention but blinds fastest. Twill weave provides a balance of permeability and solids capture. Monofilament fabrics resist cake adhesion better than multifilament but may allow fine particle pass-through. For colloidal or near-colloidal slurries — a common challenge in lithium battery material processing — a multifilament twill woven from 50-denier PP fiber, with pore sizes in the 20–40 micron range, has consistently outperformed plain-weave alternatives in actual operational testing.

Troubleshooting common failure modes

Here is a frustrating reality: most horizontal filter press downtime is preventable. The three failure modes below account for an estimated 70% of unplanned stoppages based on real-world case data from multiple industrial installations. Yet virtually no supplier documentation addresses them with actionable detail.

Cloth blinding: diagnosis and remediation

Symptom: Filtrate flow rate declines progressively across cycles; cycle time increases by more than 15% over a 30-day period without a corresponding change in feed solids content.

Root causes: Fine colloidal particles penetrate the cloth weave and accumulate in fiber interstices; oil or surfactant contamination creates hydrophobic zones; calcium carbonate scale deposits in hard-water environments.

Fixes: Increase high-pressure cloth wash frequency (automated cloth washers at 700–1,000 psi are standard on modern presses); switch to a monofilament weave with larger nominal pore size to reduce deep penetration; for scale, implement a periodic 2–5% citric acid soak cycle. In one documented case at a Texas municipal wastewater plant, implementing weekly acid wash cycles extended cloth life from 4 months to 11 months — reducing annual cloth spend by $31,000.

Plate cracking and frame failure

Symptom: Visible filtrate leakage between plate faces during the pressure cycle; sudden pressure drop on the hydraulic gauge during feeding.

Root causes: Operating above rated closing pressure; thermal shock from feeding slurry above 200°F into cold plates; impact damage during cake discharge if plates are shifted too aggressively; UV degradation in outdoor installations (polypropylene plates degrade under prolonged UV exposure).

Fixes: Verify that hydraulic closing pressure is set no higher than 10% above the plate manufacturer's rated maximum. Install a feed temperature sensor with an interlock that prevents cycling if slurry exceeds the plate temperature rating. For outdoor presses, specify UV-stabilized polypropylene plates — the material cost premium is roughly 8%, negligible against plate replacement costs.

Pressure inconsistency and uneven cake formation

Symptom: Cake thickness varies significantly between front and rear chambers; some chambers produce wet cake, others produce dry cake in the same cycle.

Root causes: Partially blocked feed manifold or inlet port on specific plates; uneven slurry distribution from a worn or incorrectly sized feed pump; air entrainment in the feed line causing pressure surges.

Fixes: Remove and flush all plate inlet ports during scheduled maintenance — a task that takes less than two hours but is frequently skipped. Install a pressure differential indicator across the feed manifold to detect flow imbalance early. Ensure the feed pump delivers slurry at a steady, controlled ramp-up rather than at full pressure immediately — most modern PLC-controlled presses support programmable feed ramp profiles.

"The single most cost-effective investment in filter press performance is a rigorous preventive maintenance schedule — not higher-pressure equipment. Most premature failures trace back to deferred cloth washing, skipped port inspections, and over-pressure operation." — Industry consensus among filter press manufacturers and plant engineers surveyed in 2026 operational benchmarking studies.

Real-world case studies with quantified results

Numbers matter more than claims. The following cases represent documented industrial outcomes with a horizontal filter press in three distinct application sectors.

Case 1: copper tailings dewatering — Nevada mining operation

Challenge: The facility processed 180 tons/day of copper flotation tailings with average feed solids content of 35% by weight. The existing belt filter press was yielding cake moisture of 28–32%, creating disposal cost and transport challenges.

Solution: Installation of a 320 m² automatic membrane horizontal filter press with polypropylene membrane plates and PP monofilament filter cloth.

Results: Average cake moisture reduced to 16.5% — a 13-point improvement. Throughput increased to 210 tons/day on the same footprint. Downstream hauling costs dropped by $220,000 annually. Capital payback period: 22 months.

Case 2: municipal sludge dewatering — Ohio wastewater plant

Challenge: A 15 MGD municipal facility needed to upgrade from centrifuge dewatering to meet tighter biosolids disposal standards. Target: cake solids above 22% dry weight.

Solution: A 150 m² recessed chamber filter press configured for fully automatic operation with IoT pressure monitoring.

Results: Cake solids consistently reached 24–27% dry weight, exceeding the target. Polymer conditioning costs decreased 18% due to better control of feed consistency. Unplanned downtime fell by 31% in the first year after installation due to remote monitoring alerting operators to early pressure anomalies.

Case 3: chemical plant effluent treatment — Texas specialty chemicals

Challenge: Processing acidic process water (pH 2.5–3.5) containing titanium dioxide solids at 8 tons/hour. Corrosion had destroyed two previous filter press machines within 18 months.

Solution: A 200 m² plate and frame filter press with acid-resistant polypropylene plates, PVDF-coated manifolds, and PP multifilament filter cloth rated to pH 1.

Results: Zero plate failures over 30 months of continuous operation. Filter cloth service life averaged 9 months per set — triple the life achieved with the previous polyester cloth installation. Total maintenance cost reduction: $95,000 over the 30-month period versus the prior configuration.

Sizing framework: how to estimate press capacity for your slurry

Every horizontal filter press application is different — and sizing errors in either direction are costly. Undersized presses bottleneck production; oversized units waste capital and energy. Use the following framework as a first-pass estimate before engaging a filter press manufacturer for detailed sizing.

Step-by-step capacity estimation

1. Determine slurry feed rate (GPM or m³/hr): Start with your upstream process output — the volume of slurry the press must handle per hour or per shift.
2. Characterize solids content: Express as percent solids by weight (% w/w). Higher solids concentration generally means faster cake formation and shorter cycle times.
3. Estimate specific resistance: If lab filtration data is available, use the specific cake resistance (α) value. Without lab data, use benchmark values: municipal sludge ~1×10¹² m/kg; mine tailings ~2×10¹¹ m/kg; chemical precipitates ~5×10¹¹ m/kg.
4. Calculate required filtration area: A simplified formula — Filtration Area (m²) = [Feed Rate (m³/hr) × Cycle Time (hr)] / [Chamber Volume per m² × Fill Factor (0.85 typical)].
5. Select chamber depth and plate count: Standard chamber depths are 25 mm, 32 mm, and 40 mm. Deeper chambers increase cake capacity per cycle but require higher closing force. Plate count = Total Filtration Area / Area per plate (typically 1.0–2.5 m² per plate depending on plate size).
6. Verify hydraulic closing force: Required closing force (tons) = Operating pressure (psi) × Total filtration area (in²) ÷ 2,000. Confirm the hydraulic cylinder rating meets or exceeds this value with a 20% safety margin.

Quick reference: typical cycle times by application

To summarize: selecting the right horizontal filter press is ultimately an engineering exercise, not a catalog selection. The framework above gives industrial procurement teams a structured starting point — but real-world slurry testing (ideally a pilot press trial using your actual feed material) remains the most reliable path to accurate sizing before a capital decision.

Conclusion

A horizontal filter press is one of the most versatile and cost-effective solid-liquid separation systems available for industrial-scale dewatering — but only when correctly specified. The key takeaways from this guide: membrane presses justify their premium in high-moisture-sensitivity applications; polypropylene cloth covers the majority of industrial chemistries; TCO thinking shifts the economics dramatically compared to unit price evaluation; and most downtime is preventable through structured maintenance protocols. Use the sizing framework in section 7 as a first-pass estimate, then validate with slurry-specific pilot data before committing capital. The difference between a 10-year, $875,000 asset and a persistent operational headache comes down to the depth of analysis applied at the selection stage.
