Ceramic disk filter buying guide: how to choose the right one for your system

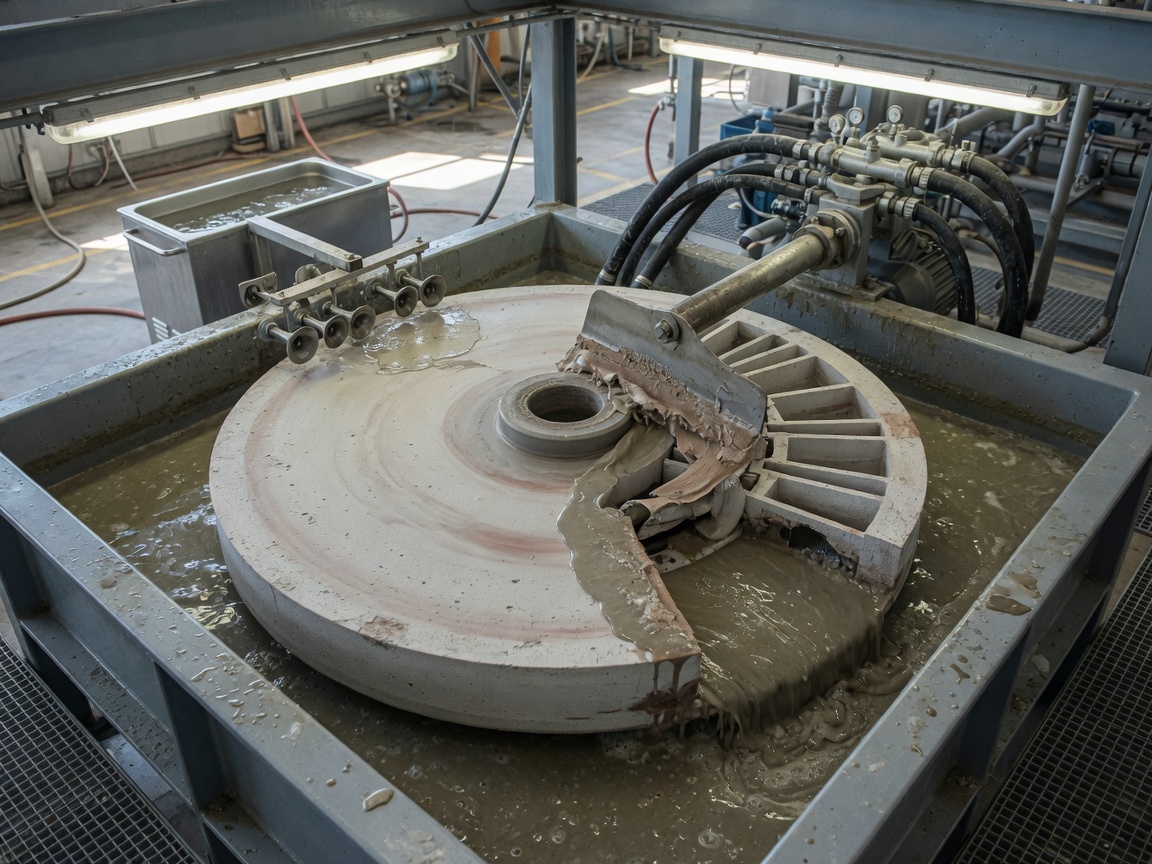

What is a ceramic disk filter?

A ceramic disk filter is a solid-liquid separation device that uses porous ceramic discs — typically with micropore sizes between 1 and 5 microns — to remove suspended solids, pathogens, and fine particulates from liquids through capillary pressure or vacuum-assisted filtration. The disc-shaped filter elements rotate through a slurry or water feed, form a filter cake on the surface, and then discharge the solids via a scraper mechanism, completing one full cycle before re-entering the liquid. This continuous-cycle design is one of the core reasons industrial buyers favor it over batch-type alternatives.

The ceramic filter element is most commonly fabricated from corundum (Al₂O₃) or silicon carbide (SiC), both of which deliver exceptional chemical resistance and mechanical durability. According to a ceramic filter overview from Wikipedia, the capillary action generated by the microporous structure is what fundamentally separates ceramic-based media from granular or polymer alternatives — liquid is drawn through the pores under vacuum, while solids are held on the disc surface. That capillary mechanism operates efficiently at relatively low vacuum pressures, typically 0.02–0.09 MPa, which directly translates to measurable energy savings versus belt or drum filters.

In water treatment applications, the same disc geometry is deployed as a ceramic water filter or ceramic filtration system, where the disc filter media screens out bacteria, protozoa, and turbidity-causing particles. Industrial variants — often called industrial ceramic filters or sintered ceramic filters — handle mineral slurries in mining and metallurgy at throughput rates exceeding 1,100 kg/m²·h. The underlying physics are identical; what differs is the housing design, ceramic disc filter element configuration, and downstream automation.

How does the filtration cycle actually work?

Understanding the operating cycle helps you evaluate whether a ceramic disk filter is right for your process conditions. Here is how a standard vacuum cycle unfolds:

1. Submersion phase: The ceramic filter plate submerges into the slurry tank. Capillary suction — assisted by a vacuum pump — draws liquid through the micropores into an internal filtrate channel.
2. Cake formation: Solids accumulate on the outer disc surface, forming a filter cake. Cake thickness typically reaches 5–25 mm depending on solids concentration and dwell time.
3. Drying phase: As the disc rotates above the slurry level, continued vacuum draws residual moisture through the cake. Moisture content in the discharged cake can drop to 8%–15% for iron or copper concentrates.
4. Discharge phase: A ceramic scraper removes the dried cake from the disc surface and directs it to a collection conveyor.
5. Backwash/cleaning phase: An ultrasonic cleaning system or reverse-pulse backwash clears blinded pores, restoring permeability before the next immersion cycle.

Main types of ceramic disk filters available in 2026

Not all configurations are interchangeable. The market currently segments into five practical variants: standard duty (iron/copper concentrates), large-diameter heavy-duty (high-tonnage mineral processing), acid/alkali-resistant (modified ceramic formulations for corrosive slurries), ultra-fine particle grade (sub-10 µm applications such as tailings dewatering), and automated smart units with PLC integration and remote monitoring. Choosing the wrong type for your feed chemistry or particle size distribution is one of the most common — and expensive — procurement errors we see in the field.

Ceramic disk filter vs. sand filter vs. membrane filter: head-to-head comparison

The single most common question from U.S. procurement engineers evaluating filtration upgrades is: does a ceramic disk filter actually outperform the alternatives across all the metrics that matter for our operation? The honest answer is — it depends on your specific combination of flow rate requirements, target particle size, budget cycle, and regulatory constraints. The table below consolidates the data points that matter most for a procurement decision.

What the table makes clear is that a porous ceramic filter occupies a distinct performance band — it outperforms granular filtration media on particle retention and energy efficiency, yet falls short of ultrafiltration membranes on pathogen log-reduction. For operations where turbidity and TSS removal are the primary objectives and ultra-pure effluent is not required, the ceramic disk filter consistently delivers the best energy-to-performance ratio.

When sand filters still make sense

Of course, there are situations where granular filtration media remains the practical choice. Pre-treatment of high-turbidity feeds before a ceramic membrane filter stage is one common configuration. Similarly, facilities with extremely tight capital budgets and low particulate loads may find that a ceramic depth filter or sand media bed adequately meets their effluent standards without the added complexity of ceramic disc management. The key is matching the technology to the actual performance requirement — not to a purchasing preference.

Where membrane filters pull ahead

Ultrafiltration membranes dominate when the regulatory target requires 4-log virus reduction or when a facility is treating direct potable reuse (DPR) streams. In those scenarios, the 1–5 µm pore structure of a standard ceramic filter plate is simply too coarse. Pairing a ceramic disk pre-filter with a downstream UF membrane, however, is a configuration gaining traction at mid-size U.S. municipal plants — the ceramic stage extends membrane life by removing the bulk of suspended solids before the high-value membrane sees the feed.

NSF/ANSI 61 and EPA compliance: what U.S. buyers must verify

Regulatory compliance is where most vendor datasheets go silent — and where U.S. buyers get into trouble. For any ceramic disk filter used in contact with drinking water or water destined for human consumption, NSF/ANSI Standard 61 certification is a non-negotiable baseline requirement under the Safe Drinking Water Act framework.

"Drinking water system components — materials, products, and systems — that contact drinking water or drinking water treatment chemicals must be evaluated for their potential to leach contaminants into drinking water." — U.S. EPA, drinking water treatment technologies

Beyond NSF/ANSI 61, buyers evaluating water purification filters for municipal applications must also confirm Surface Water Treatment Rule (SWTR) credit eligibility. The EPA grants turbidity removal credit for ceramic filtration only when log-removal values are validated through challenge testing. Industrial buyers in food and beverage must additionally reference FDA 21 CFR Part 174 for indirect food-contact materials — the ceramic filter housing and seals are both in scope.

A compliance verification checklist for procurement teams

Before issuing a purchase order, request the following documentation from any supplier of a ceramic filter housing or complete system:

• NSF/ANSI 61 certificate listing the specific product model number (not a generic brand certificate)
• Third-party challenge test report showing log-reduction values for Giardia and Cryptosporidium at rated flow rates
• Material Safety Data Sheet (SDS) for the ceramic disc media, including alumina or SiC composition and any binder chemistry
• Evidence of EPA Drinking Water State Revolving Fund (DWSRF) eligibility if applying for federal financing
• Compliance status with state-level secondary maximum contaminant levels (SMCLs) where applicable

Industrial applications: different rules apply

Mining and mineral processing operations using a sintered ceramic filter for tailings dewatering are not subject to NSF/ANSI 61 — but they must comply with Clean Water Act (CWA) effluent discharge limits and, in many western U.S. states, zero-liquid-discharge (ZLD) mandates. A diatomite filter disc or standard ceramic disc system must demonstrate that its filtrate quality meets the facility's NPDES permit thresholds before commissioning.

Total cost of ownership: maintenance, energy, and replacement cycles

Capital cost is the number that appears on the requisition form, but it rarely tells the real story. Based on analysis of multiple U.S. installations, the 10-year total cost of ownership for a ceramic filtration system often differs from a sand or membrane alternative by 20%–45% — and not always in the direction buyers expect.

Energy consumption breakdown

The capillary-action mechanism of a porous ceramic filter operates at vacuum pressures of 0.02–0.06 MPa, compared to 0.3–0.8 MPa for pressure-driven membrane systems. In practice, this translates to 0.08–0.15 kWh per 1,000 gallons of filtrate — roughly 50%–70% lower than comparable UF membrane installations, according to 2026 data from equipment lifecycle assessments. Over a 10-year operating horizon at average U.S. industrial electricity rates (~$0.085/kWh), a mid-size 500 gpm ceramic disk system can generate $180,000–$310,000 in cumulative energy savings versus membrane alternatives.

Maintenance cost components

Maintenance cost for a ceramic disk filter breaks down into three recurring categories. Ultrasonic cleaning consumes minimal energy but requires periodic transducer replacement — budget approximately $800–$1,500 per transducer set every 24–36 months. Acid washing (typically dilute oxalic or citric acid) to clear mineral scale from the ceramic filter element runs $200–$600 per cycle depending on system size and acid volume; frequency varies from monthly in hard-water environments to quarterly in softer-water applications. Disc replacement is the highest single-event cost: individual ceramic filter plates typically run $400–$1,200 per disc, and a full 12-disc unit replacement can reach $8,000–$15,000. Plan for one partial replacement cycle at the 4–5 year mark under normal operating conditions. Why do so many operations managers underestimate this? Because vendors quote disc lifespan under ideal conditions — not under the vibration loads and pH swings typical of real-world installations.

Real-world U.S. installation case studies

Abstract performance specs become meaningful only when grounded in actual operating experience. The following cases reflect recent U.S.-based deployments and illustrate both the strengths and limitations of ceramic disk technology in practice.

Case 1: Municipal water district in the Mountain West

A mid-size water district serving approximately 45,000 customers in Colorado replaced an aging sand filtration train with a four-unit ceramic disk filter array in 2024. The primary driver was Cryptosporidium compliance following a state enforcement action. Post-installation turbidity measurements consistently fell below 0.1 NTU at the 95th percentile — meeting EPA's Enhanced Surface Water Treatment Rule threshold with margin. Energy consumption dropped 38% versus the legacy pressure filter system. The one unexpected challenge: winter feed water temperatures near 36°F reduced ceramic permeability by approximately 15%, requiring seasonal vacuum pressure adjustments. The operations team addressed this with a minor PLC setpoint revision.

Case 2: Food and beverage processing plant in the Midwest

A large-scale beverage manufacturer in Illinois integrated an industrial ceramic filter system into its process water circuit to reduce TSS loading on the downstream reverse osmosis (RO) train. Before installation, RO membrane replacement was required every 14 months due to fouling. After installing a three-stage ceramic disc pre-filtration system using 3 µm ceramic filter plates, RO membrane life extended to 38 months — generating approximately $220,000 in avoided membrane replacement costs over three years. The payback period on the ceramic system was 26 months.

Case 3: Copper concentrate dewatering at a Nevada mining operation

A copper producer in Nevada replaced three legacy vacuum belt filters with a single large-diameter sintered ceramic filter unit. Filtrate moisture content dropped from an average of 22% to 11%, which reduced downstream drying energy costs by over $400,000 annually. The operational shift also reduced tailings pond loading, directly supporting the site's ZLD compliance roadmap. Actual testing found that at feed slurry densities above 72% solids by weight, throughput degraded approximately 18% from nameplate — a limitation the team managed by adjusting the feed dilution ratio rather than overloading the ceramic disc filter element.

How to choose the right ceramic disk filter for your system

Selecting a ceramic disk filter that actually matches your process requirements — rather than one that looks good in a spec sheet — requires evaluating six interdependent variables. Here is the selection framework used by experienced filtration engineers.

Six-variable selection framework

1. Feed particle size distribution (PSD): If more than 30% of your feed solids are below 10 µm, standard 1–5 µm ceramic disc media may blind prematurely. Request a pilot test with your actual slurry before full procurement.
2. Feed chemistry (pH, temperature, oxidizing agents): Alumina-based ceramic is stable from pH 3–11. If your process involves stronger acid or alkali excursions, specify SiC or modified corundum formulations for the ceramic filter element.
3. Required filtrate quality: Define your target effluent turbidity (NTU), TSS (mg/L), and any microbial log-reduction targets before contacting suppliers. This single variable narrows your pore size specification significantly.
4. Flow rate and system footprint: Match the ceramic filtration system disc area to your design flow with at least a 20% capacity buffer for peak demand and maintenance downtime.
5. Regulatory compliance tier: Municipal and food-grade applications require NSF/ANSI 61 certified units. Industrial discharge applications require CWA NPDES alignment. Confirm the compliance tier before shortlisting vendors.
6. Automation and integration requirements: Smart-system ceramic disk filters with PLC integration add 15%–25% to capital cost but can reduce labor-hours by 60%+ in high-volume operations — a worthwhile trade-off for facilities running 24/7.

2026 trends shaping procurement decisions

In 2026, two converging forces are reshaping how U.S. buyers approach ceramic disk filter procurement. The first is AI-assisted predictive maintenance: newer units from leading manufacturers embed vibration and permeability sensors that feed machine-learning models, alerting operators to impending pore blockage or disc fracture before failure occurs — dramatically reducing unplanned downtime. The second is ESG-driven capital allocation: mining and industrial operators facing investor pressure around water stewardship are increasingly specifying low-energy ceramic depth filter solutions as a documented component of their sustainability disclosures. The global ceramic filter market is projected to reach $1.24 billion by 2027 at a CAGR of approximately 6.8%, according to recent market research — and U.S. industrial demand is a meaningful share of that growth.

Troubleshooting common failure modes

No equipment discussion is complete without addressing what goes wrong. Facility engineers searching for failure-mode guidance for ceramic disk filters will find this section covers the most common issues encountered in U.S. installations — and the corrective actions that actually work.

Pore blinding and permeability loss

This is the most frequent complaint. Pore blinding occurs when fine particles, biological growth (biofouling), or mineral scale accumulate in the micropores of the ceramic filter element faster than routine cleaning can remove them. Symptoms include rising vacuum pressure with declining filtrate flow. The corrective sequence: first increase ultrasonic cleaning intensity or frequency; if flow does not recover within two cycles, proceed to an acid wash using 1%–3% oxalic or citric acid solution at 40–50°C for 30–60 minutes. Persistent blinding that does not respond to acid cleaning typically indicates irreversible fouling — the affected ceramic filter plate should be replaced rather than re-treated.

Disc cracking and mechanical failure

Ceramic materials are brittle by nature — this is a known limitation. Cracking most often originates from three causes: thermal shock (rapid temperature change exceeding 40°C/minute during cleaning cycles), point-load impact (solids or debris striking the disc edge during rotation), and fatigue from cyclic vacuum stress. Visually inspect all discs during each scheduled maintenance window. Hairline cracks invisible to the naked eye can be detected by submerging the disc and applying slight pressure — air bubbles at the crack location confirm the defect. Replace cracked discs immediately; a fractured disc allows solids bypass that contaminates the entire filtrate stream.

Abnormal pressure drop and vacuum loss

Unexpected pressure drop across the ceramic disk filter system — distinct from gradual permeability loss — usually traces to one of three sources: a compromised disc-to-hub seal allowing air ingress, a failing vacuum pump unable to maintain operating vacuum, or internal filtrate channel blockage. The diagnostic approach is to isolate individual disc sectors using the vacuum manifold shutoffs and test each segment independently. Seal failures are the most common culprit in systems older than four years — particularly in installations where thermal cycling stress has degraded the elastomeric gaskets. Budget for seal inspection as a standard annual maintenance item, not an exception event.

Frequently asked questions

Conclusion: making a confident ceramic disk filter decision in 2026

The ceramic disk filter has matured into a proven, high-performance technology for a wide range of industrial and municipal applications — but it is not a universal solution. The information gaps that have historically made procurement decisions difficult — no comparison data against competing technologies, no regulatory compliance guidance, no transparent cost-of-ownership analysis — are exactly what this guide has aimed to close. The comparison table in Section 2 gives you a defensible basis for technology selection. The compliance checklist in Section 3 protects you from a costly regulatory misstep. The troubleshooting section prepares your operations team for the real-world issues that vendor literature consistently omits.

In 2026, the strongest case for a ceramic disk filter rests on three pillars: superior energy efficiency versus membrane alternatives, lower long-term maintenance burden versus granular media in high-turbidity applications, and an expanding ecosystem of AI-enabled monitoring that is rapidly addressing the system's traditional Achilles heel of pore management. Match your application requirements to the selection framework in Section 6, verify compliance documentation before issuing any purchase order, and demand pilot-test data for any non-standard feed material. That process will put you in the position to make a decision you can defend — technically, financially, and regulatorily.
